10kV Distribution Transformer Supplier China: What to Verify First

Quick Answer: A 10kV distribution transformer supplier China buyers can audit is judged on four documents: the type test report for the rated voltage class, the guaranteed no-load and load loss figures, the outline drawing that states vector group and tap range, and the routine test sheet that ships with each unit. Capacity alone says very little. Two 1000 kVA units at the same price can sit a double-digit percentage apart on load loss, and that gap shows up on the electricity bill every month for the next fifteen years.

What a 10kV distribution transformer supplier China should prove on paper

Routine tests are cheap: winding resistance, turns ratio, impedance, applied voltage and induced overvoltage. Type tests are the expensive ones, and a certificate is only worth reading if it covers your voltage class. For cast resin dry type units to IEC 60076-11, ask for temperature rise, lightning impulse withstand, sound level and partial discharge by name.

The partial discharge figure is the most useful line on that report. Cast resin classes are normally declared below 10 pC at 1.3 times rated voltage. A reading above 20 pC points to voids in the casting, and voids come from resin batches, vacuum level or cure profile rather than from the winding design. Ask for the batch record before the repeat order. Class F insulation with a 100 K rise is the usual package; class H with an 80 K rise buys margin for a plant room that runs hot in August.

Dry type or oil immersed: the choice that moves the price

Indoor installations settle this before price does. A cast resin unit has no oil to bund, no conservator to inspect and no fire load, which is why basements, hospitals, tunnels and data halls almost always go dry. An oil immersed unit with a corrugated tank carries the same duty outdoors, costs 10 to 30 percent less at equal capacity, and scales to ratings that cast resin cannot reach.

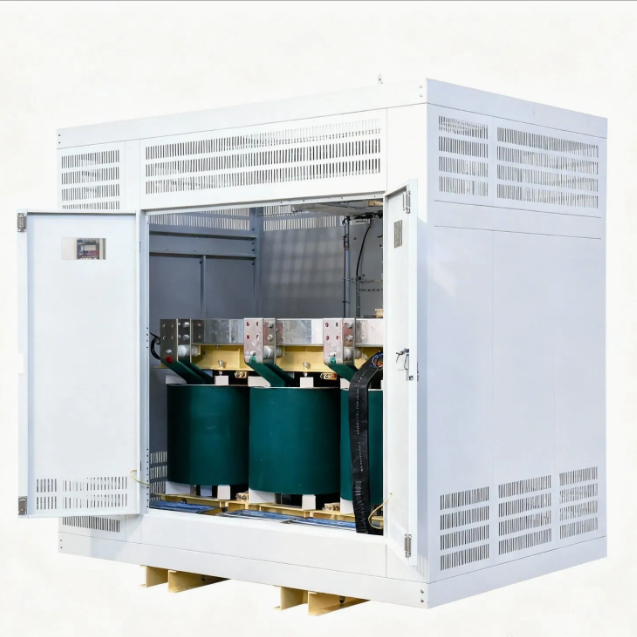

Our own lines split along that line. The 1000 kVA three phase dry type unit built for 10 kV and 11 kV systems uses a vacuum cast resin winding inside an IP20 sheet steel enclosure and runs below 55 dB at full load. The oil immersed distribution range covers the larger ratings, where a radiator bank is the only practical way to move heat out of the tank.

One nameplate detail surprises buyers. Some networks run 11 kV nominal, and a supplier with a real 10 kV and 11 kV product line will quote a unit wound for the higher voltage rather than push a 10 kV design past the top of its tap range. Confirm the nominal system voltage before drawings are released.

Loss grade, impedance and tap range: what belongs in the order

The suffix on the model tracks the loss grade, not the capacity. SCB10, SCB11, SCB12 and SCB14 dry type units differ mainly in core material and core build, and each step up cuts no-load loss. On a transformer that stays energised around the clock, one step is normally a double-digit percentage. When a 10kV distribution transformer supplier China quotes the same kVA in two grades, the cheaper line usually hides a lower grade rather than a lower margin.

Four numbers belong in the purchase order: capacity in kVA, voltage ratio, impedance and guaranteed losses. Impedance on 10 kV distribution units is normally 4 percent, which sets the fault current downstream switchgear must break. High voltage taps are usually plus or minus 2 by 2.5 percent, five positions, off circuit. Dyn11 is the standard vector group where the low side feeds a mixed load.

Site conditions that change what a 10kV distribution transformer supplier China quotes

Ambient temperature, altitude and humidity move a rating before anything else does. Above 1000 m the dielectric withstand falls away, so the unit is de-rated or the clearances are opened up. Coastal salt fog pushes the enclosure from IP20 to IP23. The same logic runs through pad mounted transformer checks.

Custom work costs days as well as money. Non-standard ratios, off-standard impedance, IP23 or IP33 enclosures, dual low voltage windings and colour matching all trigger drawing revisions, and drawing revisions are where the schedule goes. That detail decides whether the unit leaves the factory in 25 days or 40.

FAQ

Q: How long does a 10kV distribution transformer supplier China ship after the deposit?
A: Standard ratings in the dry type and S11 oil immersed lines usually leave the factory 25 to 40 days after drawing approval. Copper windings, non-standard ratios and IP23 enclosures sit at the long end. Sea freight adds its own timeline, and transit is the part first-time buyers underestimate.

Q: Which test documents should I ask for with the quotation?
A: Four. The type test report for your voltage class, the routine test template with the loss measurement method, the partial discharge result for cast resin units, and the outline drawing with weight and centre of gravity. A quotation without the loss measurement method cannot be compared with the next one.
